PowerShell Configuration

The following extensibility files have PowerShell configuration options available:

• AdapterEngine.config.json
• AuditingEngine.config.json
• ChannelEngine.config.json
• ConnectorEngine.config.json
• LoggingEngine.config.json

In each file, PowerShell configuration is stored in a standard JSON object named powerShellSettings.

Extensibility Configuration

Each configuration object has a schema version. This page describes the latest versions. Older versions remain compatible, but when you use properties described here, update the corresponding object version as shown.

PowerShell Settings

Property	Description	Required
$version	The object version: 1.1	Yes
executionMode	Selects the execution mode. Valid values are OutOfProcessWorker, InProcessSharedRunspaces and InProcessLegacy.	No, default is OutOfProcessWorker
powerShellExecutionPolicy	Sets the execution policy for scripts. Valid values are Unrestricted, RemoteSigned, AllSigned, Restricted, and Bypass. See Changing PowerShell Execution Policy.	No, default is null
usageSettings	A collection of settings for the different PowerShell script usages. See the Usage Settings section below.	No, default is null
outOfProcessSettings	Settings specific to the OutOfProcessWorker execution mode. See the Out-of-process Settings section below.	No, default uses the default values listed in the Out-of-process Settings

"powerShellSettings": {
  "$version": "1.1",
  "executionMode": "OutOfProcessWorker",
  "powerShellExecutionPolicy": null,
  "usageSettings": [],
  "outOfProcessSettings": {
    "$version": "1.0",
    "workerLifetimeLimit": {
      "$fmt": "timeSpan",
      "$value": "24:00:00"
    },
    "workerMemoryLimit": 1073741824,
    "workerMaxConcurrentExecutions": 200
  }
}

Usage Settings

Usage settings apply to a specific kind of PowerShell script. Most environments do not need them; use them to override the execution location or managed-runspace limits for a particular script type.

Property	Description	Required
$version	The object version: 1.0	Yes
scriptType	The type of script to which the settings apply. See the table below for valid values.	Yes
executionLocationOverride	Overrides the execution location derived from the executionMode. Valid values are InProcess and WorkerProcess.	No, default is null
lockWaitTimeout	How long to wait for a runspace in use to be available. Only used for InProcessSharedRunspaces execution mode.	No, default depends on usage type.
poolGrowthLimit	The maximum number of pooled runspaces. Only used for InProcessSharedRunspaces execution mode.	No, default depends on usage type.

"usageSettings": [
  {
    "$version": "1.0",
    "scriptType": "Transform",
    "executionLocationOverride": "InProcess",
    "lockWaitTimeout": {
      "$fmt": "timeSpan",
      "$value": "01:05:00"
    },
    "poolGrowthLimit": 5
  }
]

Usage Setting Script Types

Extensibility	Script Types
Adapter	Transform, ReverseTransform, TransformSchema, JoinSelection
Auditing	Auditing
Channel	Channel
Connector	GetAll, PollIdChanges, PollIdEntity, PollEntityChanges, Add, Update, Delete, DeleteAll, ModifyAnchor, ChangePassword, Schema
Logging	Logging, LogJob

NOTE

Scheduled log job scripts (LogJob) always run in-process. If the global mode is OutOfProcessWorker, UNIFYConnect uses managed runspaces for these scripts. A WorkerProcess usage override for LogJob is also resolved to in-process execution.

Out-of-process Settings

Property	Description	Required
$version	The object version: 1.0	Yes
workerLifetimeLimit	The maximum lifetime of a worker process.	No, default is 24 hours
workerMemoryLimit	The worker-process memory limit in bytes.	No, default is 1 GiB (1073741824 bytes)
workerMaxConcurrentExecutions	The maximum number of scripts that a single worker process may execute concurrently.	No, default is 200

"outOfProcessSettings": {
  "$version": "1.0",
  "workerLifetimeLimit": {
    "$fmt": "timeSpan",
    "$value": "24:00:00"
  },
  "workerMemoryLimit": 1073741824,
  "workerMaxConcurrentExecutions": 200
}

UI Controls

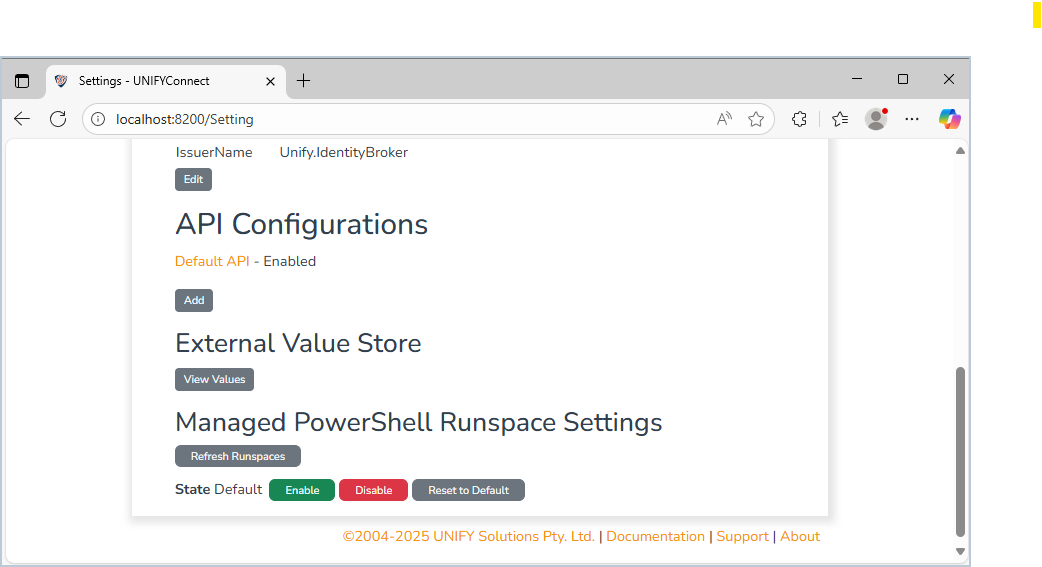

The Settings page provides controls for PowerShell execution. These controls affect only the current runtime state and do not persist changes to disk. They are intended for development and troubleshooting.

Refresh Runspaces

When In-process Shared Runspaces mode is in use, this button immediately disposes of cached PowerShell runspaces, frees their memory, and forces new runspaces to be created.

When Out-of-process Worker mode is in use, this button signals each worker process to complete its current work and terminate.

Managed Runspace State

These controls switch between In-process Shared Runspaces and In-process Legacy modes without restarting the application.

Enable puts all eligible PowerShell usage into In-process Shared Runspaces mode. Disable puts it into In-process Legacy mode. Reset To Default restores the defaults defined in each engine's configuration. These controls are unavailable when the --powershell-force-oop command-line argument is used.

NOTE

After changing the managed-runspace state at runtime, restart the service when practical to release PowerShell global state that cannot be refreshed. Runtime changes are not permanent; update the configuration files for lasting changes.

Command Line Arguments

Argument	Description
--powershell-force-oop	Forces all PowerShell usage to be executed using an out-of-process worker service. This argument takes precedence over any extensibility configuration option.
--powershell-worker-exe-path	Sets a custom path for the worker executable. If omitted, UNIFYConnect uses Services/Workers/PowerShell/Unify.IdentityBroker.PowerShellWorker under the installation directory, with the .exe extension on Windows.
