Configuring Authorization for the Web Component

The UNIFYConnect Web Component can be configured to require roles-based authorization for all users. Users are granted permissions based on their role.

Configuring Authorization

To configure authorization, open the Web.config file and make the following changes:

Inside the appSettings element in the configuration element, add the following elements:

xml

<add key="owin:AutomaticAppStartup" value="true" />
<add key="ui:AuthorizeSetting" value="OpenId" />
<add key="ui:ClientId" value="{ClientId}" />
<add key="ui:AADInstance" value="https://login.windows.net/" />
<add key="ui:TenantId" value="{TenantId}" />
<add key="ui:PostLogoutRedirectUri" value="{PostLogoutRedirectUri}" />

If any elements already exist with these keys, replace them.

The above three settings should be configured as follows:

Name	Description
ClientId	The ID of the client application representing UNIFYConnect.
TenantId	The ID of the tenant.
PostLogoutRedirectUri	The URI to redirect to after logout.

Roles

Operations on the UNIFYConnect website require the user to be in one of the following four roles:

Role	Description
Read	Provides the ability to view all pages and configuration.
Write	Provides the ability to add components, trigger imports, update settings, etc.
Full	Provides the ability to delete components, clear connectors, etc.
Admin	Provides the ability to edit LDAP users.

Set Up HTTPS Binding in IIS

Prerequisites

SSL Certificate: You need an SSL certificate installed on the server. You can use a certificate from a trusted certificate authority (CA) or a self-signed certificate for testing.

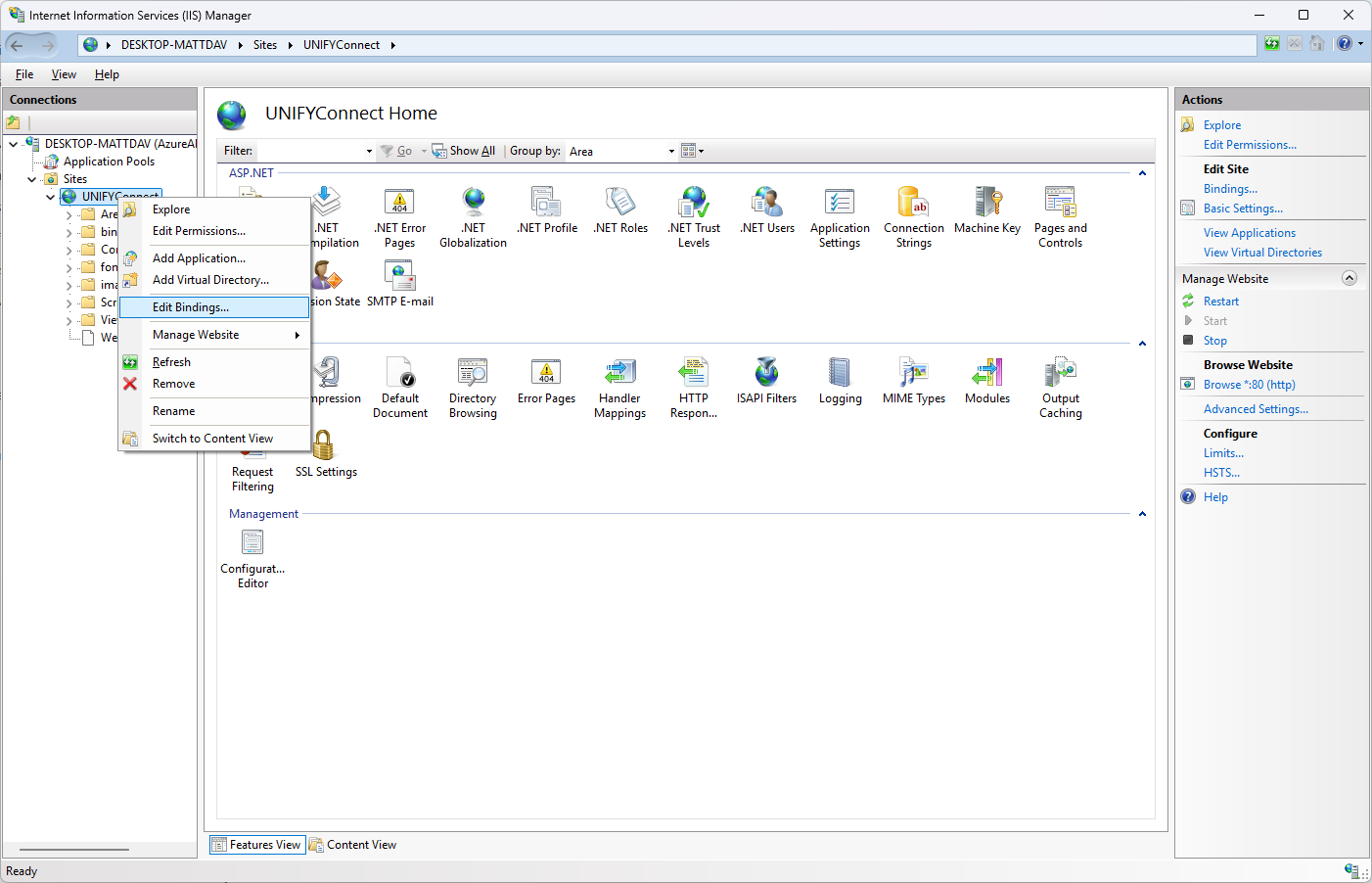

Steps to Set Up HTTPS Binding in IIS:

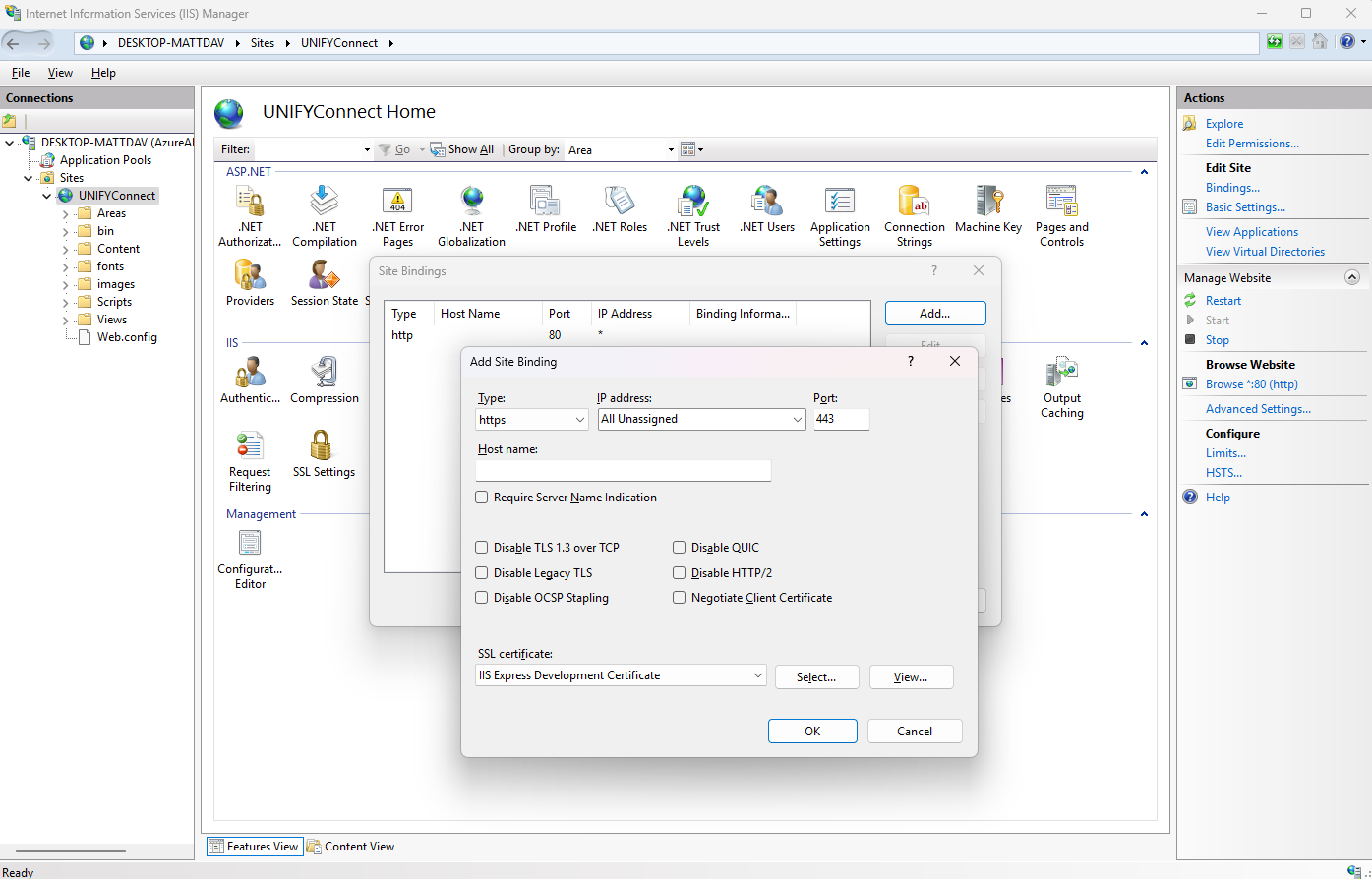

In the Add Site Binding window:
- Set Type to https.
- Leave IP address it to All Unassigned.
- Enter the Port number, and make sure it is not already in use.
- Choose your SSL certificate from the drop-down list.

Restart the website by clicking Restart on the right panel (Actions).

INFO

SSL Certificate: If you don't see your SSL certificate in the list, ensure it's installed under the server's Server Certificates in IIS Manager.
Firewall: Ensure that your firewall allows traffic on the configured port.
Security Protocol: The security protocol TLS1.2 will be used.
