APIs

Overview

The UNIFYConnect service can be configured and operated programmatically with the use of REST API endpoints.

Usage

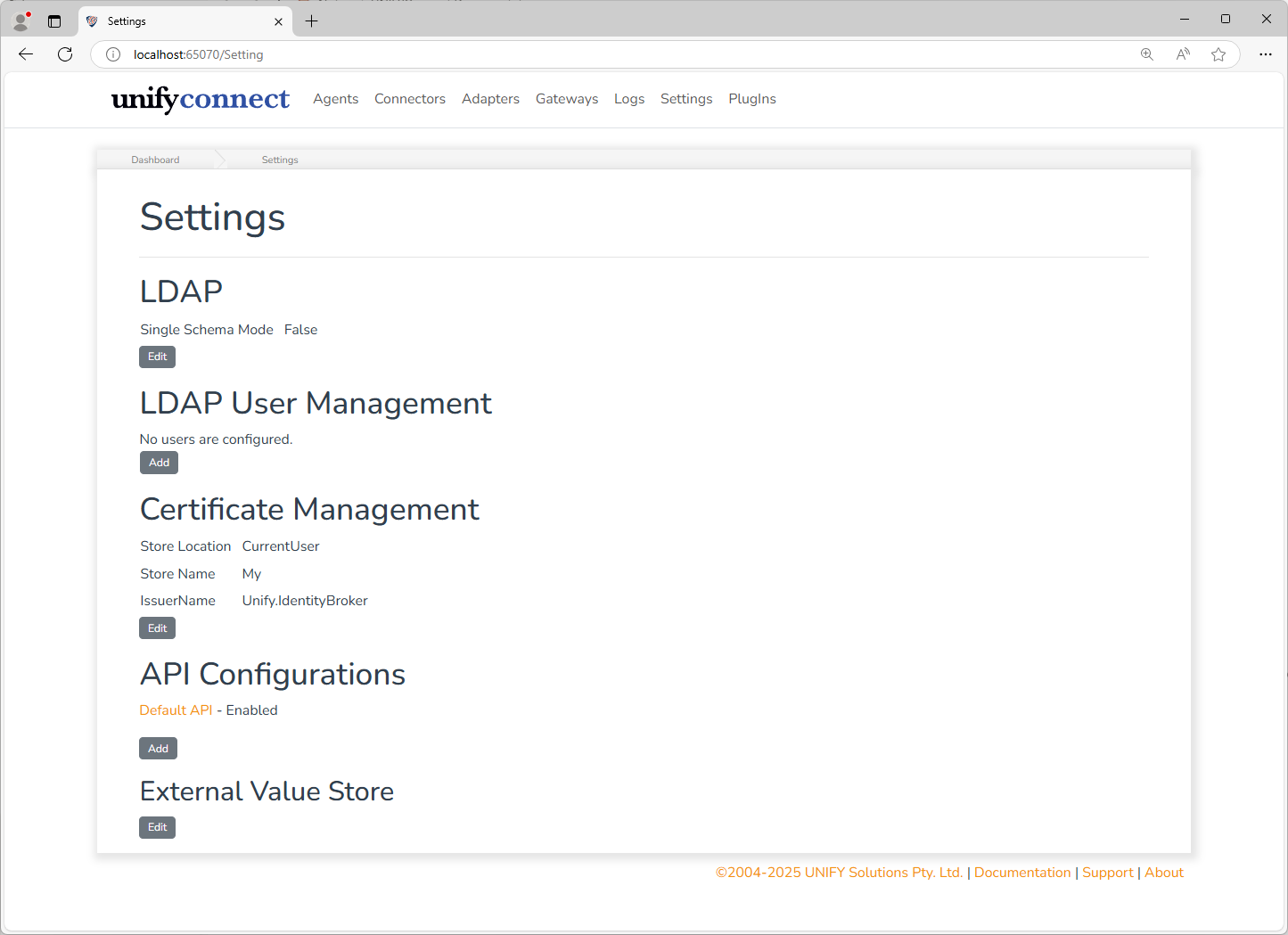

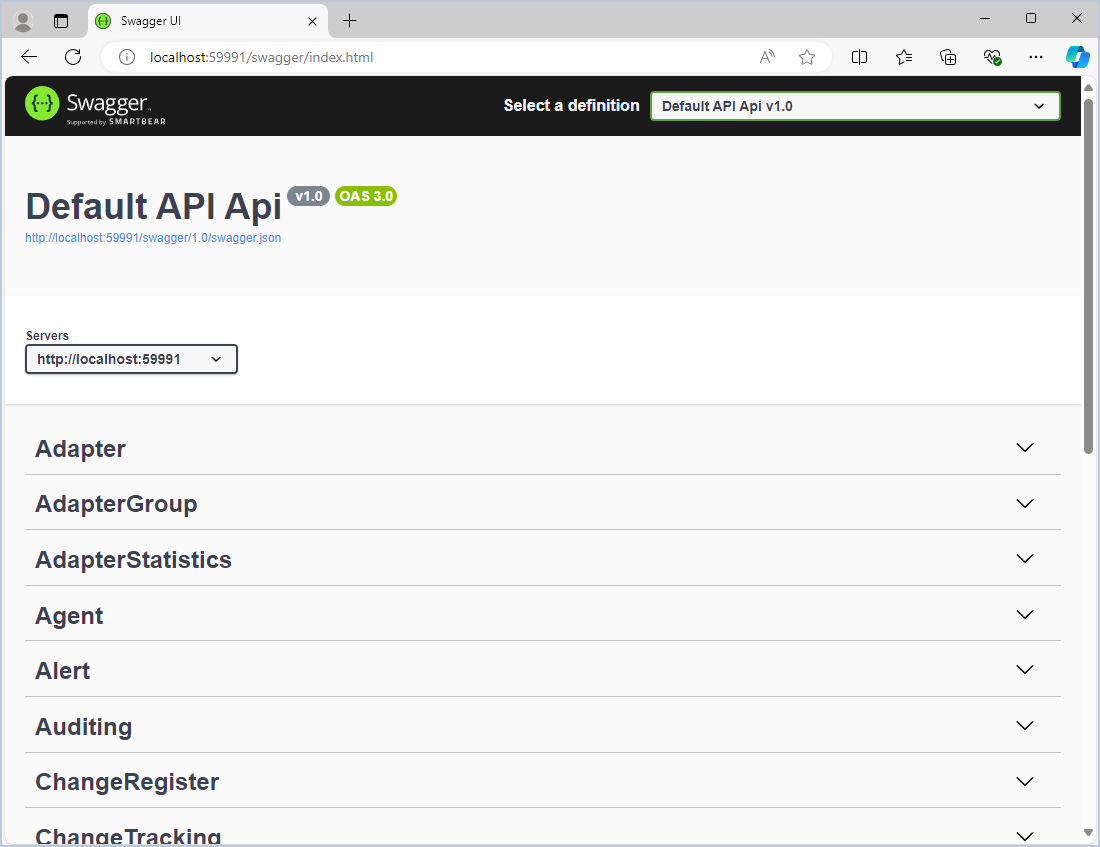

The configured API endpoints can be viewed from the Settings page. The documentation for an API endpoint can be viewed by visiting /swagger underneath the API root address. For example:

Configured API address: http://localhost:59991
API documentation address: http://localhost:59991/swagger

Configuration

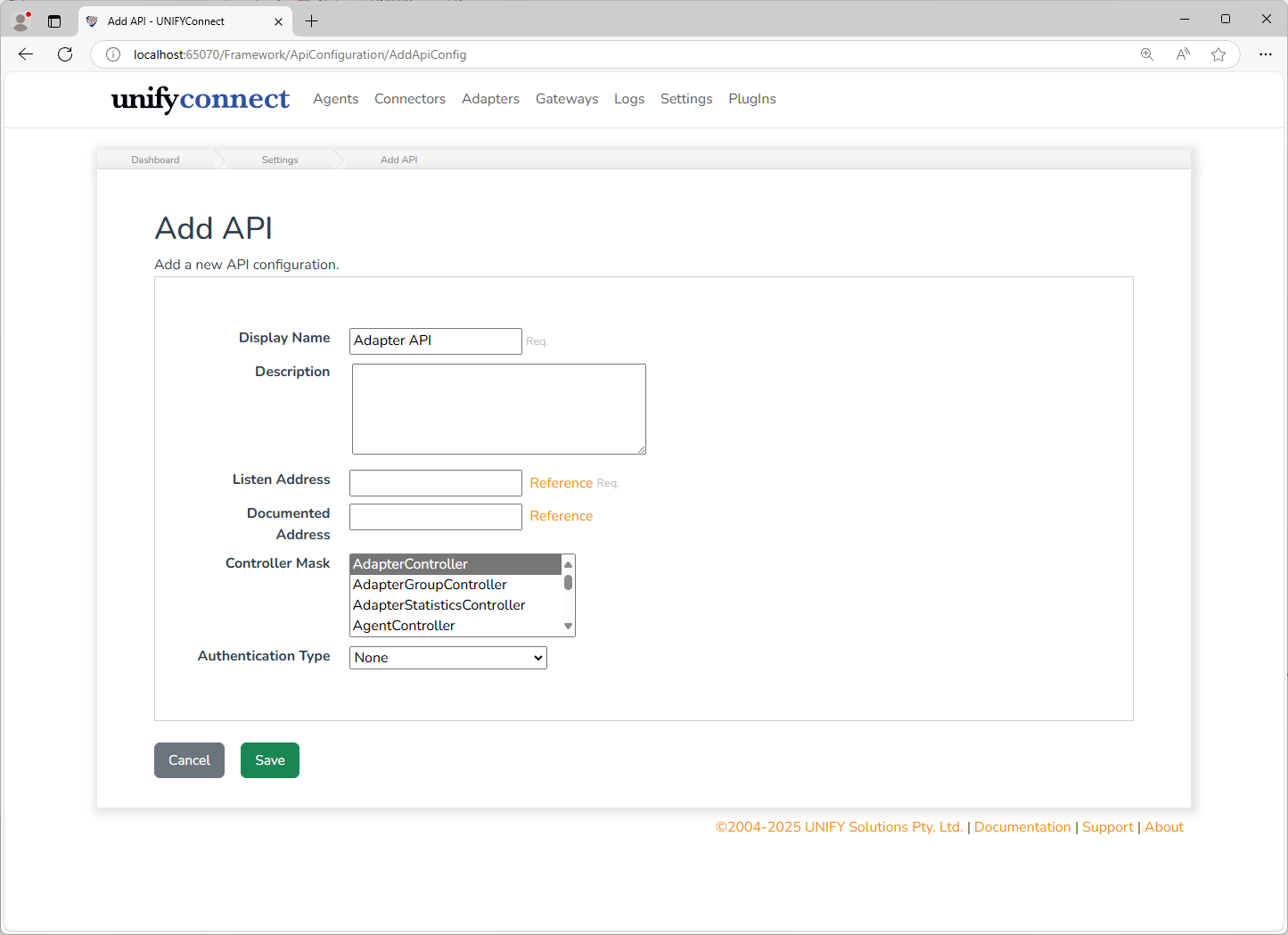

API endpoints can be added by clicking the Add button underneath API Configurations on the Settings page. An API requires the following by way of configuration:

Description	Supports Reference	Name
Listen Address	yes	The base address the API service will listen on. The special IP 0.0.0.0 can be used to listen on all IPs.
Documented Address	yes	The base address the Swagger documentation will use. This is only needed when using an invalid listen address such as 0.0.0.0, or if the listen address is not accessible from where the Swagger documentation needs to be accessible from, ie listen address is localhost, but is sitting behind a reverse proxy.
Controller Mask	no	The collection of controllers that should be operable by this API. Use Ctrl+Click to select multiple controllers. If no controllers are selected, no controller restrictions will be placed on the API.
Authentication Type	no	The type of authentication to use to secure the API.

Authentication

None

No authentication is required to connect to an API with the Authentication Type set as None.

Azure Active Directory Bearer

Requires prospective connections to the API to be authenticated against an account in an Entra (formerly Azure Active Directory) instance. Selecting this Authentication Type requires configuring an Azure AD registered application.

Description	Supports References	Name
Tenant	yes	The ID of the Entra (formerly Azure Active Directory) tenant
Audience	yes	Azure Application ID

Confirming Changes

WARNING

When changes are made to the configuration of an API, a warning appears on the Settings page with a Confirm Change button. Changes to APIs must be confirmed by clicking the Confirm Change button, otherwise, the change will be rolled back after two minutes. This is to prevent users from accidentally locking themselves out of control of the service by accidentally deleting or otherwise misconfiguring an API.

Configure Entra application

Configure an Entra registered application for use with the configured API by following the steps below:

• Register an Azure application using the steps in Register an Azure APP.

• Create app roles as per the steps specified in App roles. Ensure that the role values precisely match the values listed below. Create a role for each value.

  • Read
  • Write
  • Full
  • Admin

• Assign the required roles to a client application by following the instructions in Assign App Roles to Applications.

• Grant admin consent to the assigned roles.

• Create a client secret using this link Add a Client Secret.

• To obtain an access token for calling the API, send the POST request below using the client secret generated in the previous step.HTTP

  POST /{tenant}/oauth2/v2.0/token HTTP/1.1     //Line breaks for clarity
  Host: login.microsoftonline.com:443
  Content-Type: application/x-www-form-urlencoded

  client_id={application (client) ID}
    &scope={API Application ID}/.default
    &client_secret={client secret}
    &grant_type=client_credentials

curl -X POST -H "Content-Type: application/x-www-form-urlencoded" -d 'client_id={application (client) ID}&scope={API Application ID}%2F.default&client_secret={client secret}&grant_type=client_credentials' 'https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token'
