Installing the UNIFYConnect Service

Overview

UNIFYConnect is provided as an installation ZIP file containing the application binaries and setup scripts. The service can run as a console application on Windows or Linux, or as a Windows service.

Installing UNIFYConnect

CHECK

On Windows, ensure the ZIP file is not blocked; otherwise, the extracted files will also be blocked. Select Unblock in the ZIP file's Properties before extracting it.

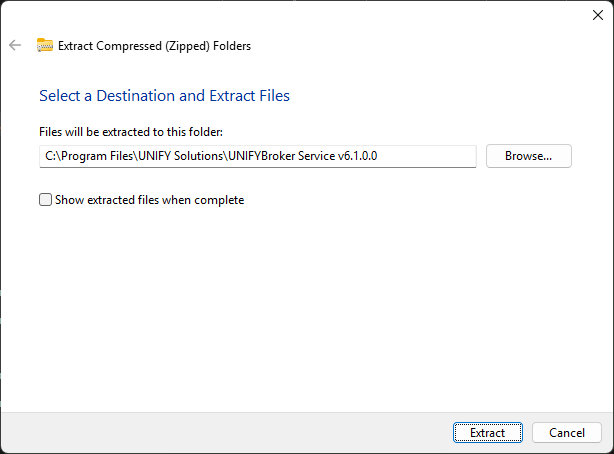

Download the package that matches the host architecture (win-x64, win-arm64, linux-x64, or linux-arm64) and extract it to the desired location. Ensure that the account running UNIFYConnect can read, write, and execute files in this location.

NOTE

Do not extract a new installation into the same location as an existing installation. We recommend keeping the service version in the destination folder as a way to differentiate.

Create a Microsoft SQL Server or PostgreSQL database, then update the UNIFYConnect extensibility configuration to target the new database.

On Windows, start UNIFYConnect as a console application by running:

%InstallDir%\Services\Unify.IdentityBroker.Service.Console.exe

On Linux, make the service and PowerShell worker executables executable, then start the service from the Services directory:

cd /opt/unifyconnect/Services
chmod +x Unify.IdentityBroker.Service.Console
chmod +x Workers/PowerShell/Unify.IdentityBroker.PowerShellWorker
./Unify.IdentityBroker.Service.Console

Replace /opt/unifyconnect with the installation path.

Running UNIFYConnect with systemd

For a production Linux deployment, run UNIFYConnect under a service manager and use a dedicated account with write access to the installation's configuration, logs, and working directories. For example, create /etc/systemd/system/unifyconnect.service with:

[Unit]
Description=UNIFYConnect
After=network.target

[Service]
Type=simple
User=unifyconnect
WorkingDirectory=/opt/unifyconnect/Services
ExecStart=/opt/unifyconnect/Services/Unify.IdentityBroker.Service.Console
Restart=on-failure

[Install]
WantedBy=multi-user.target

Adjust the account and paths for the installation, then reload systemd and enable the service:

sudo systemctl daemon-reload
sudo systemctl enable --now unifyconnect
sudo systemctl status unifyconnect

Installing UNIFYConnect as a Windows Service

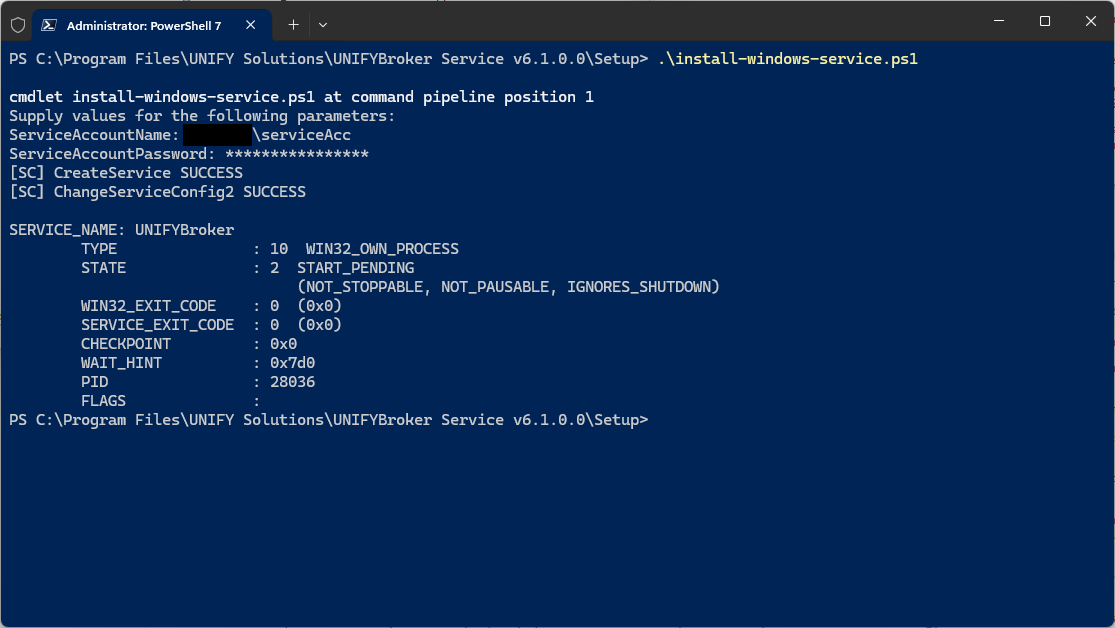

Navigate to the %InstallDir%\Setup directory and run the install-windows-service.ps1 script with administrator privileges. This script has the following parameters relevant to installation:

Parameter	Type	Required	Description
ServiceAccountName	String	Yes; prompted for if omitted	The name of the service account under which the Windows service will run. Use the down-level logon name format (for example, server01\brokerAcc).
ServiceAccountPassword	SecureString	Yes, will be prompted for if not provided	The password for the service account the Windows service will run as.
InstallationPath	String	No; normally omitted	The path to the UNIFYConnect installation directory. If omitted, the script uses the expected path relative to its default location.
NoStart	-	No	Do not attempt to start the service after creation.

The PowerShell execution policy may need to be changed to be able to run the script.

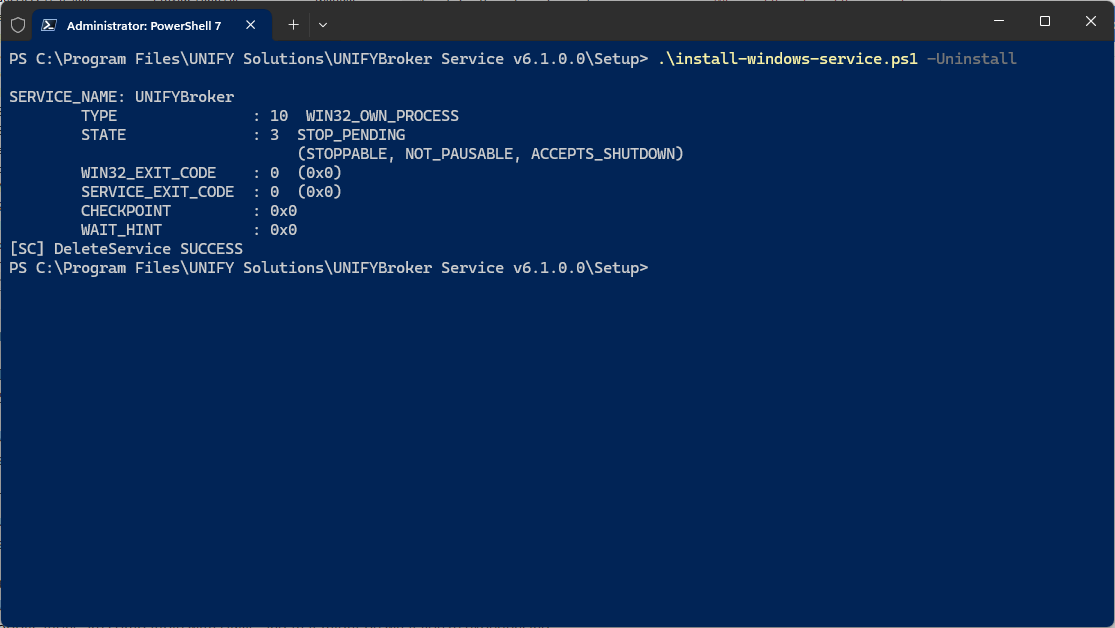

Uninstalling the UNIFYConnect Windows Service

From the %InstallDir%\Setup directory, run the installation script with the Uninstall switch and administrator privileges:

.\install-windows-service.ps1 -Uninstall

Starting the Windows Service

If the Windows service is not started by the installation script, open the Services window from Administrative Tools, or run services.msc from a command prompt. Find the UNIFYConnect service, and start it.

If the Windows service fails to start, ensure that UNIFYConnect can be run as a console application (described above) without issue, and the service account has been given the correct permissions to the installation directory.

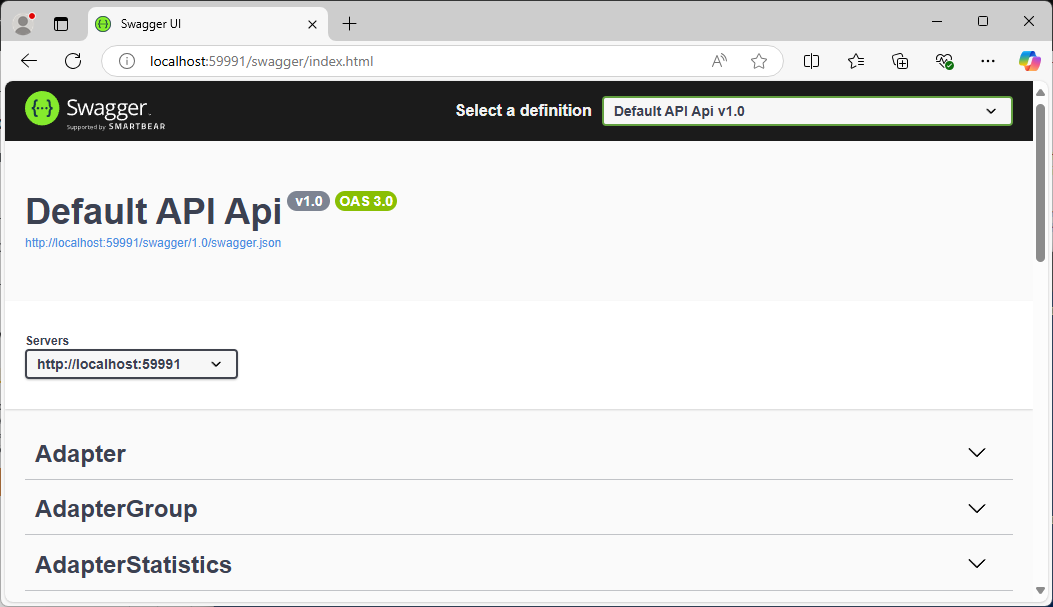

Verifying Installation

The UNIFYConnect service can be verified by opening a browser to http://localhost:59991/swagger/index.html. The UNIFYConnect API documentation should be displayed.

The UNIFYConnect service is now successfully installed. Install the UNIFYConnect Web Component now, if needed.

Troubleshooting

If the preceding steps did not work:

• Review the installation steps.
• Review the installation prerequisites.
• Open a support ticket.
